Niasi, a prominent developer of material suction machines, has created a High Power Hopper Loader with a host that is split from the hopper, offering increased safety and simplicity. To better and more efficiently serve clients throughout China, Niasi has created sales and service networks in important industrial cities such as Shanghai, Tianjin, Jiangsu, Zhejiang, Anhui, Sichuan, and others.
Niasi, a prominent developer of material suction machines, has created a High Power Hopper Loader with a host that is split from the hopper, offering increased safety and simplicity. To better and more efficiently serve clients throughout China, Niasi has created sales and service networks in important industrial cities such as Shanghai, Tianjin, Jiangsu, Zhejiang, Anhui, Sichuan, and others.

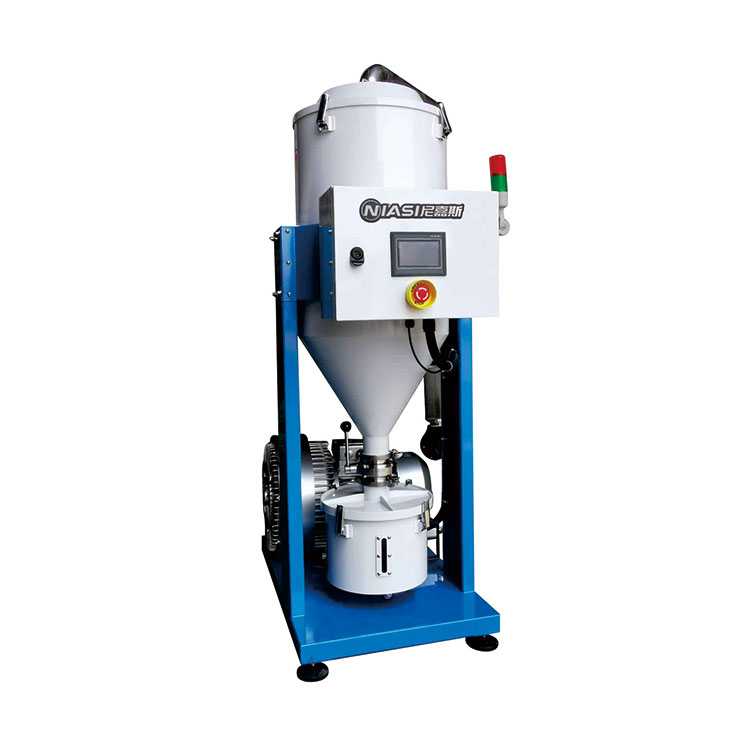

This High Power Hopper Loader has an independent filtration system, which substantially simplifies the removal of dust collection for users. The hopper is made of high-quality stainless steel, which ensures longevity and dependability. Furthermore, the High Power Hopper Loader is outfitted with a microprocessor that can run control programs and sound alarms in the event of an overload or material shortage. Furthermore, owing to the use of induction-type high-pressure fans, this High Power Hopper Loader functions quietly and has a longer life.
Modcl
|
motor
kw/Hp
|
Conveying capacty
(kg/h)
|
Loading distance
(m)
|
Staic wind pressure
(mm/H2O)
|
Hopper volume
(L)
|
Conveying tube inner dim
(mm)
|
Attached hoses
(mm)
|
Dimensions
(cm)
|
Veight
(kg)
|
NAL-330G | 1.15 | 200 | 3 | 1660 | 7.5 | Φ38 |
Φ38mmx4m
(2pcs)
|
Main frame | Main frame |
59.5x34.5x38.5 | 14 | ||||||||
NAL-800G | 1.1/3 3Φ | 450 | 4 | 1880 | 9 | Φ38 |
Φ38mmx4m
(2pcs)
|
Main frame | Main frame |
42x38x64 | 47 | ||||||||
hopper | hopper | ||||||||
45x32x45 | 7 | ||||||||
NAL-3HP | Induction | 600 | 6 | 2400 | 12 | Φ38 | Φ38x5m | Main frame | 主机/Main frame |
50x40x72 | 68 | ||||||||
2.2 3Φ | hopper | /hopper | |||||||
45x32x45 | 7 | ||||||||
NAL-5HP | Induction | 600 | 6 | 2400 | 12 | Φ38(Φ51) | Φ38x5m | Main frame | Main frame |
50x40x72 | 70 | ||||||||
3.75 3Φ | hopper | hopper | |||||||
45x32x45 | 7 | ||||||||
NAL-7.5HP | Induction | 800 | 8 | 2400 | 21 | Φ51(Φ63) | Φ51x6m | Main frame | Main frame |
50x40x72 | 75 | ||||||||
5.5 3Φ | hopper | hopper | |||||||
45x32x45 | 8.5 | ||||||||
NAL-10HP | Induction | 1000 | 10 | 2400 | 36 | Φ51(Φ63) | Φ51x6m | Main frame | Main frame |
50x40x72 | 85 | ||||||||
7.5 3Φ | hopper | hopper | |||||||
93x31.5 | 12 | ||||||||
NAL-15HP | Induction | 2000 | 15 | 2800 | 50 | Φ63(Φ76) | Φ63x10m | Main frame | Main frame |
210x68x80 | 228 | ||||||||
11 3Φ | hopper | hopper | |||||||
97.5x35x48.5 | 15 |
