Product Description

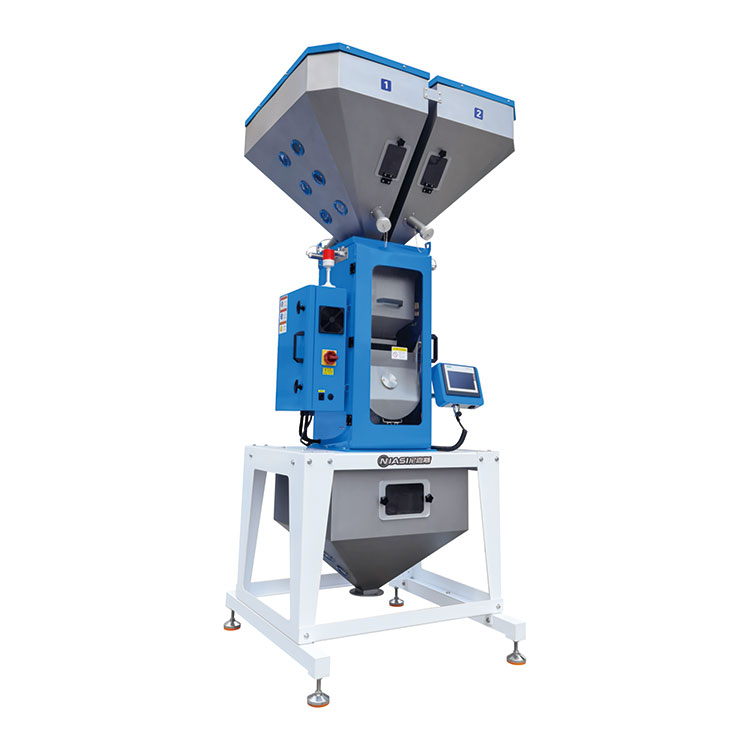

Gravimetric Blender

The Gravimetric Blender designed and manufactured by Niasi Factory is primarily used for quantitative weighing, measuring, and mixing of 2 to 6 types of materials, including virgin materials, recycled materials, colorants, and various additives, ensuring uniform mixing.

This Gravimetric Blender has a weighing capacity ranging from 5kgs/hr to 100kgs/hr. Niasi's series of Gravimetric Blenders utilize high-precision weight sensors, ensuring that the mixing ratio error of each batch (depending on the set ratio) can be controlled within ±0.5%. With a comprehensive range of models, these Gravimetric Blenders can meet various mixing accuracy requirements.

Key Features:

Easy and convenient operation with the ability to set proportions or percentages between materials.
Precise and stable continuous operation.
While mixing materials, the Gravimetric Blender simultaneously weighs the next batch of materials.
Automatic calibration compensation function: The controller automatically corrects deviations from preset values during the batching process.
Can be installed on or near the machine.
Can simultaneously control multiple Gravimetric Blenders (standard model).
Can handle up to six types of materials simultaneously.
Can be paired with a material suction machine for automatic material replenishment.
Weighing/volume production mode increases batching capacity.
All parts of the Gravimetric Blender that come into contact with materials are made of stainless steel to prevent material contamination.
Modular and detachable design for space-saving and easy cleaning.
Weighing accuracy of ±0.3%.
Grade-based safety password control and alarm recording function.
Equipped with sound and light alarms to alert maintenance personnel to quickly address machine issues.
This Gravimetric Blender from Niasi Factory offers advanced features and precision, ensuring efficient and accurate material mixing in various industrial applications.

Model		Component Number	Knife Number (micro) metering valve	Maximum yield kg/hr	Maximum amount of batch kg	Compressed air kgf/cm	Stirring motor power kw	Hopper capacity	Weighing hopper capacity	Stirring warehouse capacity	Maximum batch
GB-1	4	4	4	60	1	6	0.09	12	2	8	60
	3	3	3	70	1	6	0.09	12	2	8	70
	2	2	2	150	1	6	0.09	12	2	8	150
GB-2	6	6	4+2	120	2	6	0.09	40	8	18	60
	5	5	4+1	140	2	6	0.09	40	8	18	70
	4	4	4	180	2	6	0.09	40	8	18	90
	3	3	3	200	2	6	0.09	40	8	18	100
	2	2	2	400	2	6	0.09	40	8	18	200
GB-5	6	6	4+2	300	5	6	0.2	48	12	25	60
	5	5	4+1	350	5	6	0.2	48	12	25	70
	4	4	4	450	5	6	0.2	48	12	25	90
	3	3	3	500	5	6	0.2	48	12	25	100
	2	2	2	1000	5	6	0.2	48	12	25	200
GB-10	6	6	*	600	10	6	0.37	100	32	60	60
	5	5	*	700	10	6	0.37	100	32	60	70
	4	4	*	900	10	6	0.37	100	32	60	90
	3	3	*	1000	10	6	0.37	100	32	60	100
	2	2	*	2000	10	6	0.37	100	32	60	200
GB-25	6	6	*	1500	25	6	0.75	150	65	120	60
	5	5	*	1750	25	6	0.75	150	65	120	70
	4	4	*	2250	25	6	0.75	150	65	120	90
	3	3	*	2500	25	6	0.75	150	65	120	100
	2	2	*	4500	25	6	0.75	150	65	120	180
